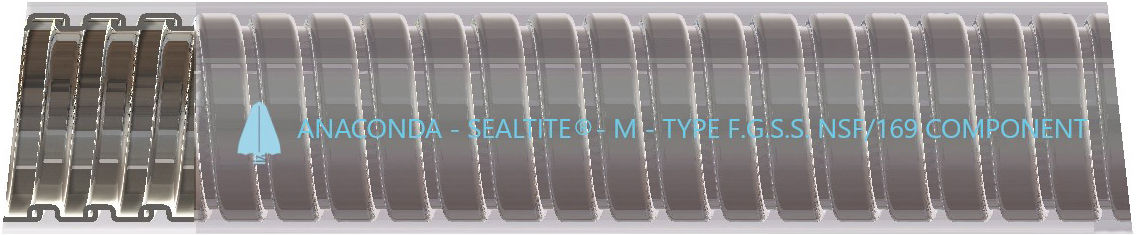

SealtiteSealtite is the brand name of the type of conduit that is used to protect wires against different circumstances. FGSS is a specially formulated NSF approved PVC jacketed conduitA conduit is a gateway in which electrical wires or other items can pass through. that meets splash zone food applications in food processing and restaurant applications. The Stainless Steel core provides extra strength. NSF approved jacket for non-contact food zones.
| Item ID | Sealtite FGSS | Std. Pkg. | Diâmetro Interno | Outside Diameter | Diâmetro externo | Diâmetro de Curvatura | Weight |
|---|---|---|---|---|---|---|---|
| Size | METERS | mm (pol) | MIN mm (inches) | MAX mm (polegadas) | mm (pol) | Kg/m (lbs/cft) | |
| 45502 | 30 | 12.29 (0.48) | 17.50 (0.68) | 18.03 (0.70) | 0.31 (21.00) | ||
| 45512 | 30 | 15.88 (0.62) | 20.88 (0.82) | 21.34 (0.84) | 0.37 (24.82) | ||
| 45531 | 30 | 26.44 (1.04) | 32.77 (1.29) | 33.40 (1.31) | 0.76 (51) | ||
| 45522 | 30 | 20.83 (0.82) | 26.16 (1.03) | 26.67 (1.05) | 0.58 (39) | ||
| 45541 | 15 | 35.05 (1.38) | 41.40 (1.62) | 42.16 (1.65) | 0.98 (65.75) | ||
| 45551 | 15 | 40.01 (1.57) | 47.37 (1.86) | 48.26 (1.90) | 1.55 (104.00) | ||
| 45561 | 15 | 51.31 (2.02) | 59.44 (2.34) | 60.33 (2.37) | 2.02 (135.54) |
